Fully motorized Supports a full range of observation methods Stability and ease of use for sophisticated experiments High S/N fluorescence imaging Specs

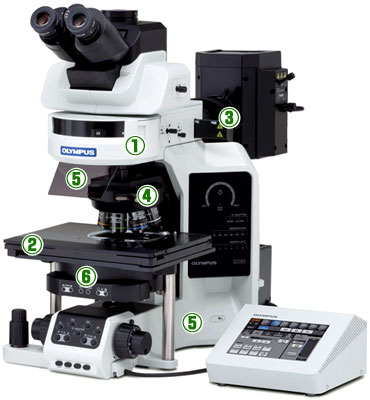

With the BX63, diverse lineups of motorized units are available. Observations are made so much faster and simpler, thanks to the interlocked motorized units working together to satisfy even the most demanding applications

(1) Motorized Fluorescence Illuminator/BX3-RFAA

The flexibility of the motorized fluorescence illuminator accommodates multi-color stained specimens. The 8-position mirror units permit quick changeover of fluorescence colors

(2) Scanning Stage with Ultrasonic/BX3-SSU

The ultrasonic stage delivers high-precision XY control. The XY-controller can be mounted on the controller/U-MCZ for the BX63 and worked like conventional stage

(3) Motorized Attenuator Wheel/U-AW

The Olympus BX63 has a motorized ND filter wheel for fluorescence and transmitted light intensity adjustments. *Special adapters are required for mounting (U-LHEAD for fluorescence, and U-LH100ADP for transmitted light)

(4) Motorized Seven Position Nosepiece/U-D7REA

Equipped with a DIC slider slot, this revolving nosepiece allows simultaneous attachment of seven objectives. It is especially suitable for continuous observations from low to high magnifications and combining specific objectives, such as polarized light observations.

(5) Microscope Frame Equipped with Motorized Focus and Field Diaphragm

This unit incorporates a high-speed, high precision motorized focusing nosepiece with 0.01 µm resolution and 20 mm vertical strokes. The field diaphragm adjustment of transmitted light is also motorized

(6) Motorized Universal Condenser/BX3-UCD8A

By integrating with designated optical components, the motorized universal condenser accommodates various kinds of transmitted light observation including brightfield, differential interference contrast and phase contrast.
